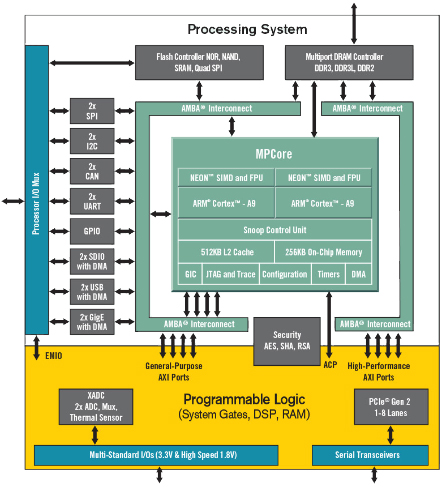

设计完善,板载资源丰富

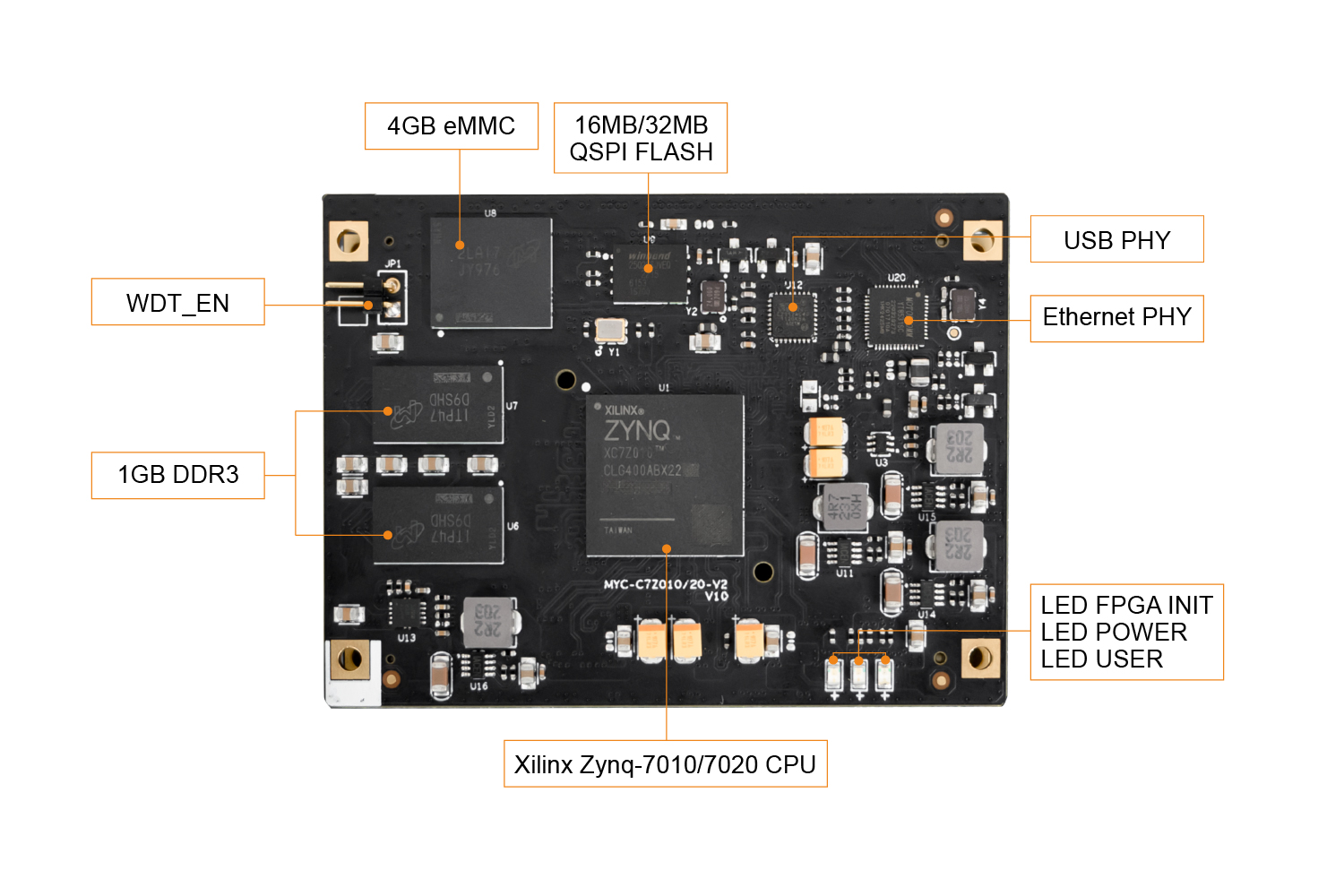

  • 1GBDDR, 4GB eMMc ,32MB QSPI flash 的完善存储组合,拒绝瓶颈
  • 板载千兆以太网 PHY及USB PHY,板载外置看门狗电路,完善易用

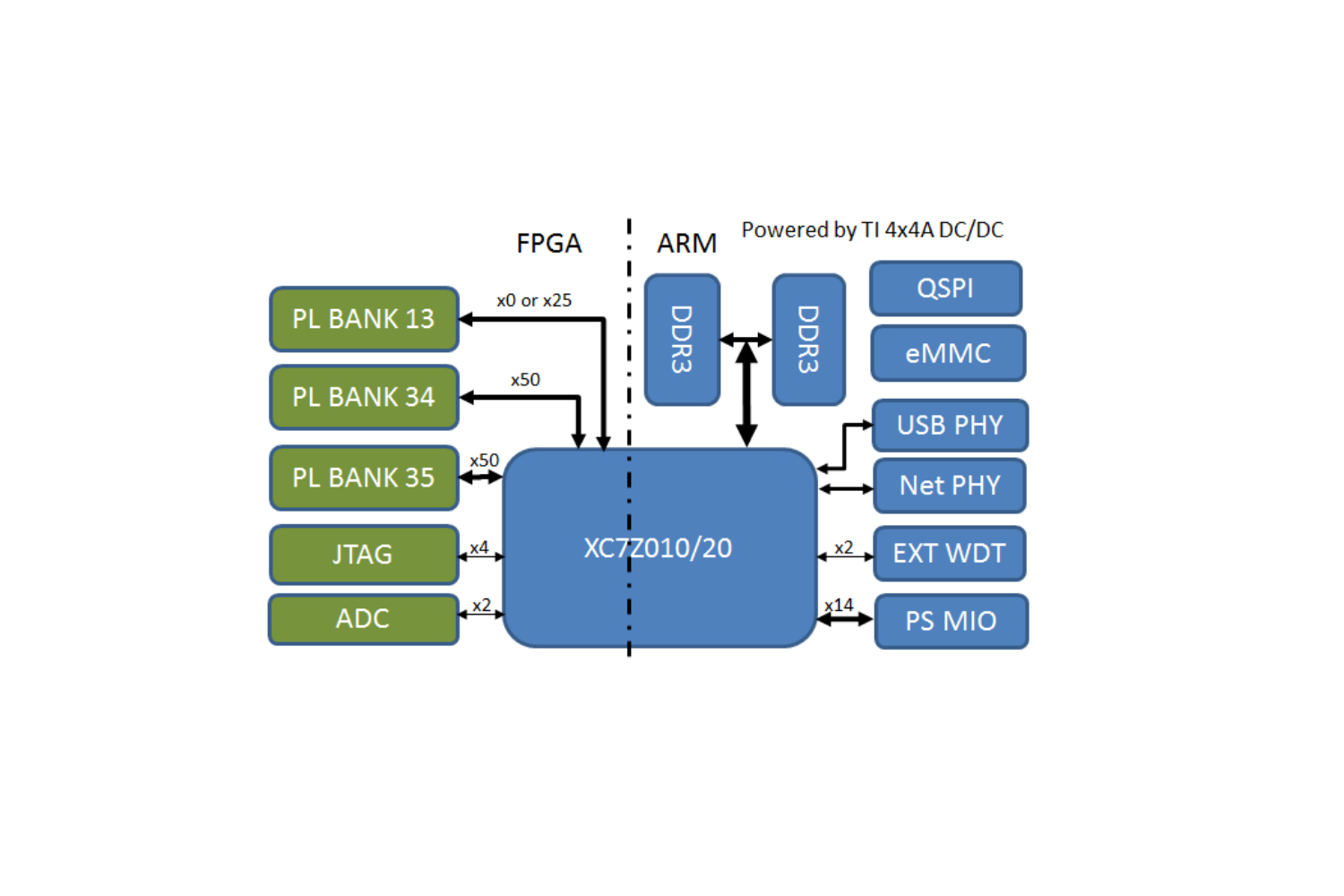

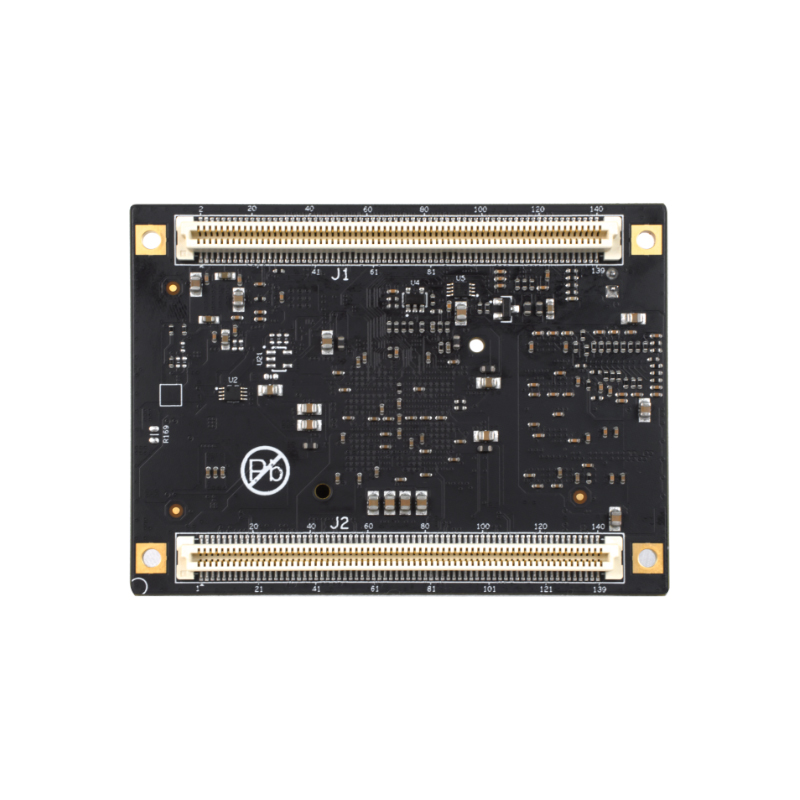

  • 双140PIN 高速BTB提供丰富拓展IO:16 PS MIO,100/125 PL MIO

高品质与高性价比完美结合

zynq开发板 zynq开发板 zynq核心板
Micron存储,村田电容
Amphenol连接器
超高产品质量
批量价格550RMB起
成本领先
十年生命周期保证
选用无忧

配套软件源码完善成熟

作为XILINX全球官方合作伙伴,米尔同时提供完善的开发环境与工具支持

软件资源及参数列表
类别 名称 备注 源码
Tool chains gcc 6.2.1 gcc version 6.2.1(Linaro GCC Snapshot 6.2-2016.11)
Boot loader BOOT.BIN 一级引导程序,包括 FSBL、U-boot Yes
Driver Linux 4.14.0 专为 MYD-C7Z010/20 的硬件制定的 Linux 内核 Yes
USB Host USB Host 驱动 Yes
Ethernet 千兆以太网驱动 Yes
MMC/SD/TF MMC/SD/TF 卡驱动 Yes
CAN CAN 驱动 Yes
LCD Controller LCD 触摸屏驱动 Yes
HDMI HDMI 芯片 SII902X 驱动 Yes
Button Button 驱动 Yes
UART 串口驱动 Yes
LED LED 驱动 Yes
GPIO GPIO 驱动 Yes
QSPI QSPI Flash S25FL256S 驱动 Yes
RTC DS3231 RTC 驱动 Yes
电阻触摸 TSC2007 电阻触摸驱动 Yes
电容触摸 FT5X0X 电容触摸驱动 Yes
XADC XADC 驱动 Yes
File system Ramdisk Ramdisk 系统镜像 Yes
Rootfs Buildroot 制作,包含 Qt5.11.3 Yes

提供丰富例程助力产品开发

长期持续更新中…

  • 第一章·················································································································· Hello_World

  • 第二章·················································································································· PL端扩展gpio-gpio_emio的使用方法

  • 第三章················································································································· PL端axi_ip核的使用方法-uart回环测试

  • 第四章················································································································· PL端扩展gpio-axi_gpio的使用方法

  • 第五章················································································································· 如何捕获PL端到PS端的中断

  • 第六章················································································································· PL端参考扩展-使用axi uart ip核

  • 第七章················································································································· PL端iic总线扩展-使用axi iic ip核

  • 第八章················································································································· 7寸LCD屏幕测试

  • 第九章················································································································· HDMI接口测试

  • 第十章················································································································· 片上XADC的应用-使用PS端的模拟IO测量输入电压

  • 第十一章················································································································· 基于vdma的7寸lcd屏幕显示sdk例程

  • 第十二章················································································································· 基于vdmad的hdmi显示sdk例程
*提供相应源码以及工程

配套评估/开发板:MYD-C7Z010/20开发套件

完善易用的高品质ZYNQ7000开发平台

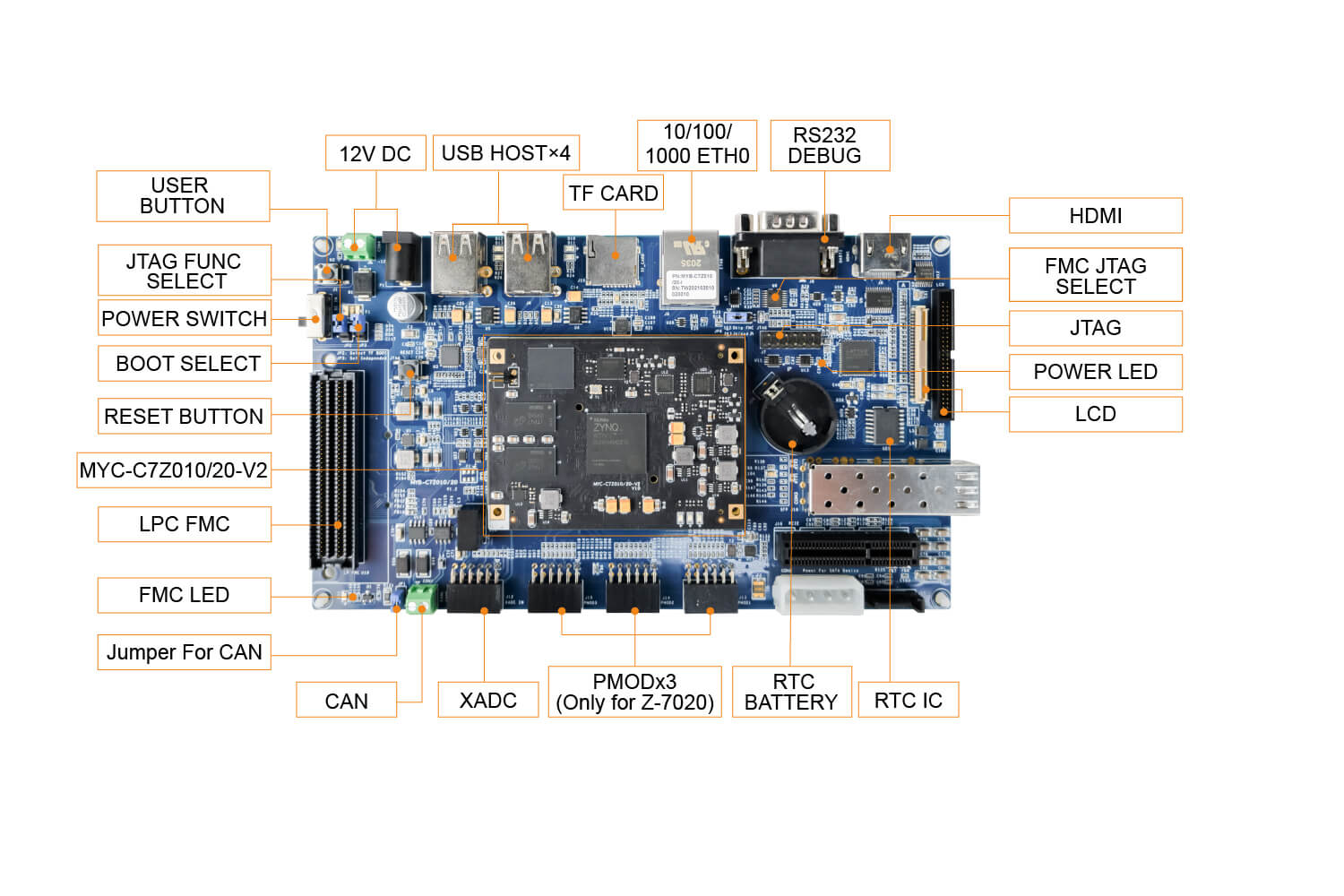

  • 外设接口全面完善,为广泛应用提供设计参考
      PS端: USB*4, TF card/CAN/Ethernet/JTAG/RS232
      PL端: XADC/FMC/HDMI/LCD/TP/PMOD
  • 提供完善的硬件参考&软件源码及教程,助力产品开发
  • 全一线品牌物料&高品质连接器,品质可靠
  • 按键与跳线设计完善易用&配件丰富,使用体验优秀

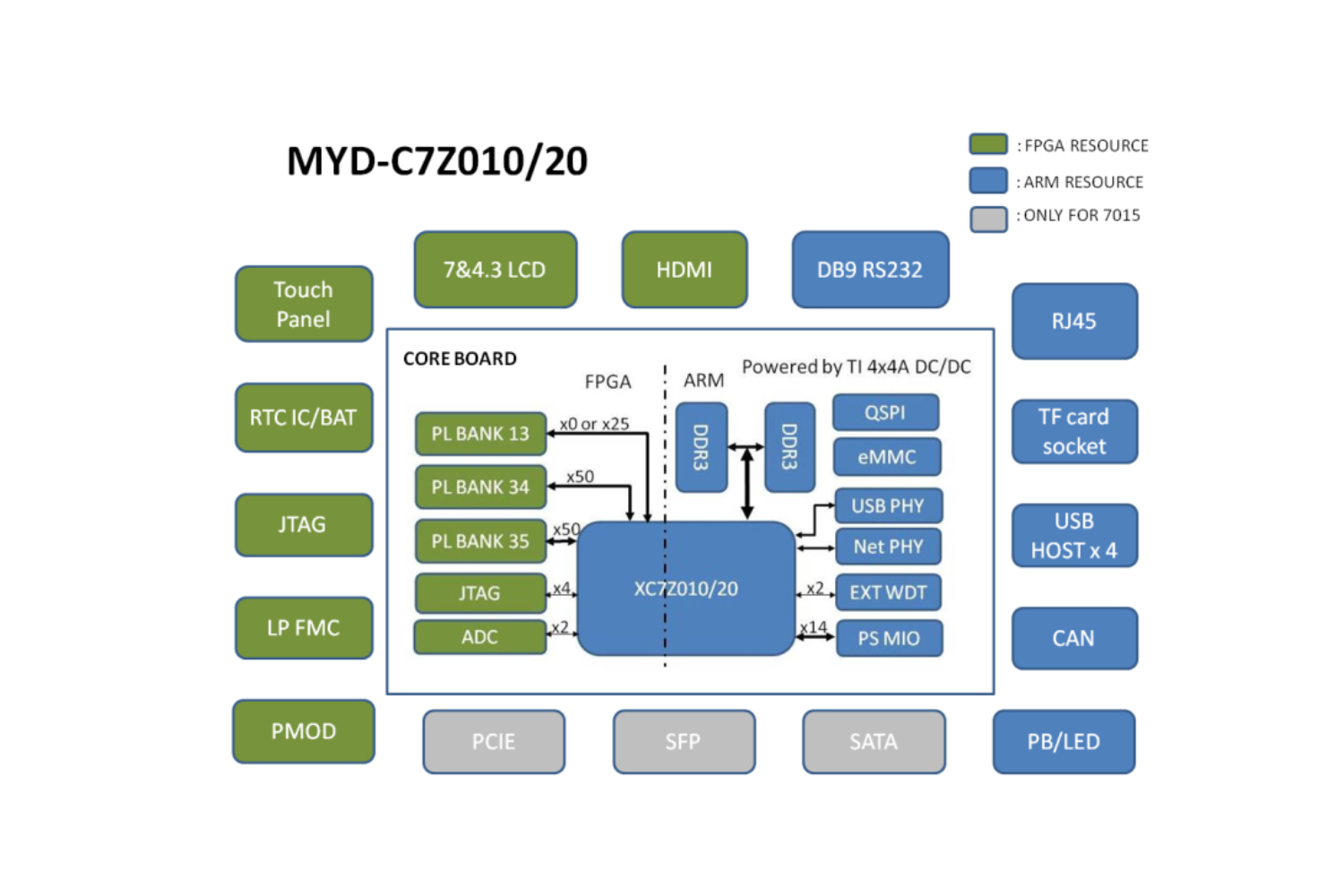

MYD-C7Z010/20开发平台架构框图

zynq开发板

产品型号配置与包装清单

MYC-C7Z010/20核心板型号配置 核心板包装清单
产品型号 产品配置 MYC-C7Z010/20核心板 1PCS
处理器 主频 DDR3 eMMC 工作温度
MYC-C7Z010-4E1D-667-C XC7Z010 667MHz 1GB 4GB 商业级
MYC-C7Z020-4E1D-667-C XC7Z020 667MHz 1GB 4GB 商业级 DVD产品资料光盘 1PCS
MYC-C7Z010-4E1D-667-I XC7Z010 667MHz 1GB 4GB 工业级
MYC-C7Z020-4E1D-766-I XC7Z020 766MHz 1GB 4GB 工业级
MYD-C7Z010/20开发套件型号配置 开发板包装清单
产品型号 产品配置 MYD-C7Z010/20开发板 1PCS
处理器 主频 DDR3 eMMC 工作温度 12V/1.25A直流电源适配器 1PCS
MYD-C7Z010-4E1D-667-C XC7Z010 667MHz 1GB 4GB 商业级 DVD产品光盘 1PCS
MYD-C7Z020-4E1D-766-C XC7Z020 766MHz 1GB 4GB 商业级 HDMI线 1PCS
MYD-C7Z010-4E1D-667-I XC7Z010 667MHz 1GB 4GB 工业级 1.5米交叉网线 1PCS
MYD-C7Z020-4E1D-766-I XC7Z020 766MHz 1GB 4GB 工业级 RS232转USB线 1PCS
